U.S. exit-sign requirements come from overlapping workplace, building, fire and accessibility rules. Identify the applicable rules and adopted editions before specifying a sign. A federal Occupational Safety and Health Administration (OSHA) requirement, a model-code provision and a local amendment are not interchangeable sources of authority.
This article provides a scope check for general-industry workplace projects. It is not a verified fifty-state adoption table or a design for a particular occupancy. The useful result is a site-specific requirements register that separates visible egress marking, accessible door identification, electrical supply and maintenance.
Establish the authority and occupancy first
Record the site, occupancy, project type and authorities responsible for the building and workplace. Ask which building and fire codes, editions and amendments apply, and which accessibility provisions govern the work. Existing-building alterations can raise different applicability questions from new construction.
State location alone may not settle the answer. A municipality can have relevant adoption or amendment provisions, and the applicable workplace regime must also be identified. Obtain the controlling documents or written authority clarification rather than copying a vendor’s state-by-state chart.
For electrical installation questions, the lighting outlet code-boundary guide explains why a general article cannot establish every local circuit requirement. An exit-sign schedule needs additional egress and accessibility decisions.
Separate four sources of requirements
| Requirement source | Main question | Evidence to retain |
|---|---|---|
| Applicable workplace rules | How must employees see and identify the exit route? | Applicable regulation and inspection responsibility |
| Adopted building/fire code | What egress arrangement and emergency provisions govern this occupancy? | Adopted edition, amendments and relevant project interpretation |
| Applicable accessibility standards | Which signs need visual or tactile features and accessible placement? | Scoping decision and technical sign specification |
| Electrical and equipment requirements | How is the selected system supplied and installed? | Approved design, equipment instructions and acceptance plan |
The table is a review framework. It does not assert that every listed source applies identically to every building.
National Fire Protection Association (NFPA) 101, the International Building Code (IBC) and the International Fire Code (IFC) are distinct documents. Determine which is relevant under the actual adoption. Do not cite a newer model-code edition as if it automatically amended a local requirement.
Read OSHA’s sign values in their own scope
OSHA 29 CFR 1910.37 addresses workplace exit-route maintenance, lighting and marking. It requires visible exits and appropriate directional marking where the route is not apparent.
Selected sign provisions are:
| Provision | Value and boundary |
|---|---|
| 1910.37(b)(6) | At least 5 foot-candles, stated as 54 lux, at the exit-sign surface from a reliable source |
| Same provision | Self-luminous or electroluminescent alternatives with at least 0.06 footlamberts, stated as 0.21 cd/m² |
| 1910.37(b)(7) | “Exit” letters at least 6 inches high and principal strokes at least 3/4 inch wide |
Sign-surface illuminance is not a universal floor-level emergency-lighting target. Luminance and illuminance describe different quantities; do not substitute their units or compare the numbers directly.
OSHA 1910.35 specifies alternate federal exit-route compliance through NFPA 101-2009 or IFC-2009. That particular recognition does not establish the edition adopted by the local building authority.

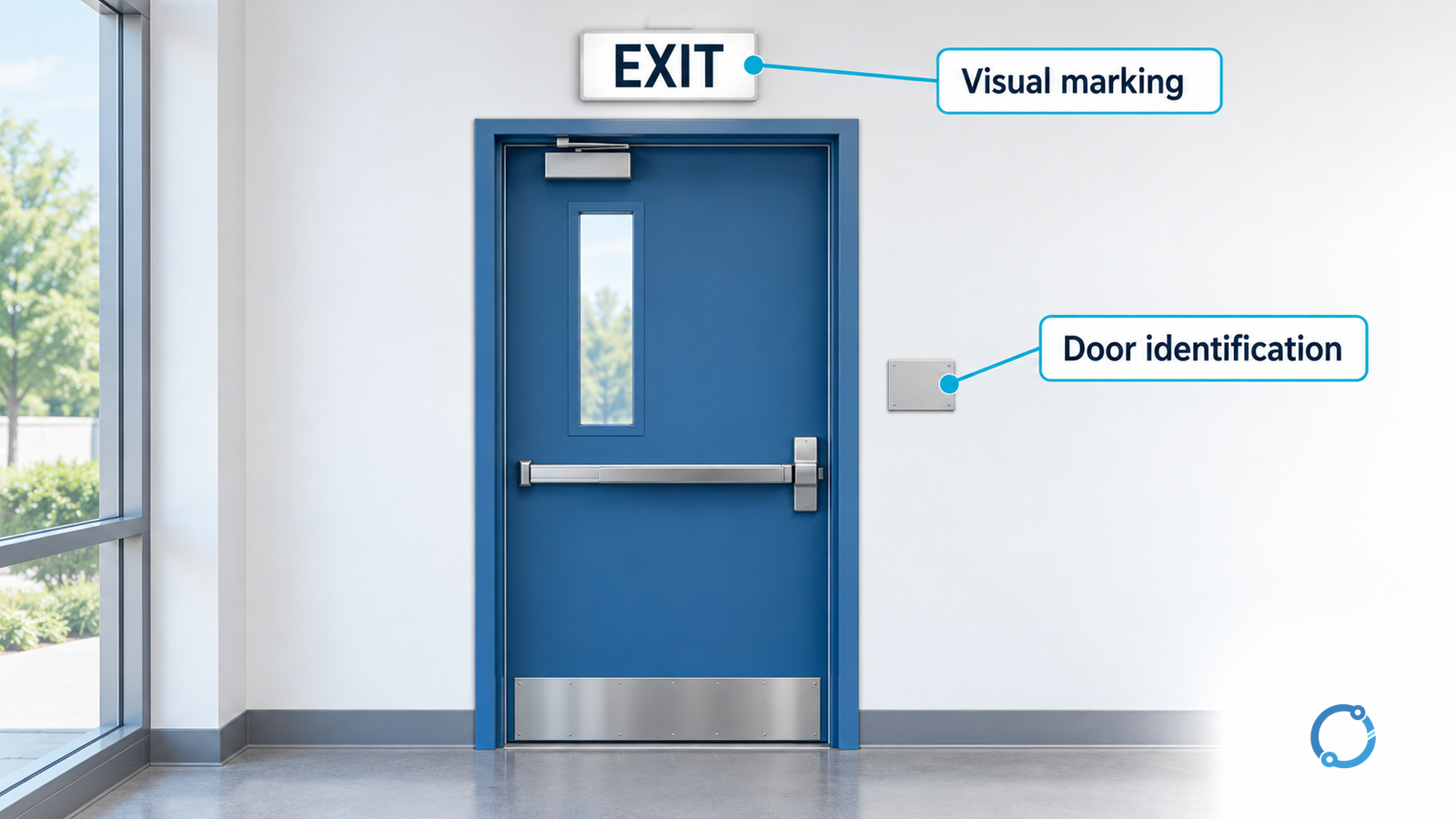

Do not confuse an overhead sign with tactile door identification
The U.S. Access Board’s Americans with Disabilities Act (ADA) sign guidance distinguishes visual signs from tactile identification at specified exit stairway, passageway and discharge doors. Tactile requirements typically need a separate sign at the exit door. Other exit labels are not all required to be tactile.
An illuminated sign above a door can serve a viewing function without being a touch-readable identifier. A tactile plaque cannot replace the long-distance visibility and illumination requirements of a separate egress sign. Determine which functions apply at each location.
Do not extend “tactile exit identification” into an unsupported claim that every overhead exit sign must carry braille. Conversely, do not omit a required accessible identifier because a brightly illuminated sign is already visible.
Build a requirements register before ordering
Use one row for each sign location or equivalent group. Record the governing function, source, applicable edition, exact required sign configuration, supporting document and inspection method.
Give unresolved items a named owner. Common questions include the adopted provisions for emergency operation, permissible sign type, placement, direction, additional content and any jurisdiction-specific color requirement. This article does not assign a universal battery duration, inspection interval or state-specific color.
Keep a requirement and a product claim separate. A sign advertised with a runtime or illumination description still needs evidence for the configuration being supplied and its acceptance under the controlling requirements.
If one sign is expected to satisfy more than one function, demonstrate each function independently. Avoid deleting a requirement simply because the purchasing schedule contains only one line item.
Verify the installed system and preserve it during changes
The acceptance plan should follow the approved design: visibility along the intended route, correct direction/content, required accessible identification, supply behavior, emergency functions and the specified inspection records.
Schedule physical or electrical work through authorized personnel and the applicable site procedures. Do not disconnect exit-sign supplies as an informal test during occupancy. Plan any interruption so the required egress safeguards remain effective.
After alterations, compare the installed signs with the revised route and door functions. A change in partitions or equipment can invalidate a previous line of sight even when the sign still illuminates.
A completed schedule states where each sign belongs, what it must do, why the requirement applies and how it will be checked. Without that source-to-location record, “OSHA/NFPA/IBC/ADA compliant” is an unresolved purchasing description.
